Schlage Replacement Door Latches: How to Pick the Right Fit
As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.
Schlage is one of the best-known names in residential and commercial door hardware, and one of the handy things about the brand is that it sells replacement latches on their own. The latch is the spring-loaded metal tongue that pokes out of the door edge and clicks into the frame. When it sticks, wears out or no longer matches a new knob finish, you can often swap just the latch in a few minutes with a screwdriver, as long as you order one that actually fits your door.
In one sentence: the 16-211 is an adjustable deadlatch for F-Series keyed entry knobs with three faceplate options, the 16210613 is an adjustable F-Series spring latch for passage and privacy doors, and the 16-126 is a deadlatch with a long 5 inch backset and a square-corner faceplate.
Schlage Replacement Door Latches Compared
| Model | Latch type | Backset | Faceplate | Finish |
|---|---|---|---|---|
| Schlage 16-211 2 3/8 or 2 3/4 Replacement Deadlatch | Deadlatch (F-Series keyed entry) | Adjustable 2 3/8 or 2 3/4 in | Triple faceplate options, size not listed | Antique Brass |
| Schlage 16210613 F-Series 1 x 2.25 | Spring latch (passage and privacy) | Adjustable 2 3/8 or 2 3/4 in | 1 x 2 1/4 in, round, square or drive-in | Oil Rubbed Bronze |
| Schlage 16-126 5 Inch Replacement Deadlatch | Deadlatch | 5 in | 1 x 2 1/4 in square corner | Satin Nickel |

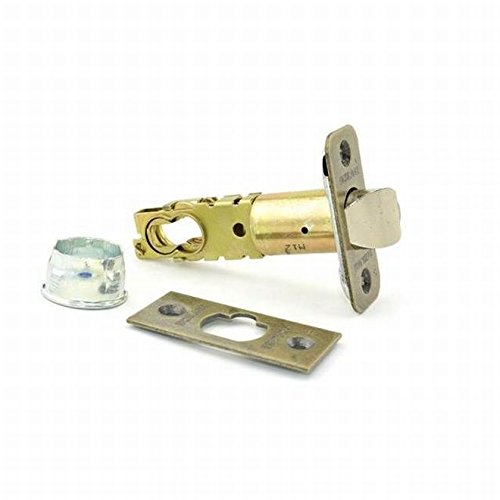

Schlage 16-211 2 3 8 or 2 3/4 Deadlatch for Keyed Entry Knobs
Schlage
Schlage 16-211 2 3/8 or 2 3/4 Replacement Deadlatch with Triple Faceplate Opti, Antique Brass
Price and specifications are read from the Amazon product page and can change.
Schlage 16-211 2 3 8 or
Best for: F-Series keyed entry knob owners
Pros
- Adjustable 2 3/8 or 2 3/4 in backset
- Triple faceplate options included
- Deadlatch for keyed entry locks
- Antique Brass finish
Cons
- Faceplate sizes not stated
- Sparse listing details
The Schlage 16-211 2 3 8 or 2 3/4 Replacement Deadlatch is the replacement latch for Schlage F-Series keyed entry knobsets, the knobs with a key cylinder you would find on a front door or garage entry door. A deadlatch is a latch with an extra small plunger beside the main bolt. When the door is closed, that plunger is pressed in against the strike plate and locks the main latch in place, so it cannot be pushed back with a card or thin tool slipped into the gap. That is why keyed entry locks use a deadlatch rather than a simple spring latch.
The listing describes an adjustable backset of 2 3/8 inches or 2 3/4 inches and calls it a universal replacement. It comes with a triple faceplate option, meaning three faceplate styles in the box so you can match what your door edge is cut for. The listing does not specify the faceplate dimensions or name the three styles, so measure your current faceplate before ordering. The finish is Antique Brass, the part number is 16211609, and it is rated for residential and commercial door locking.
This suits anyone whose F-Series entry knob latch has worn out or feels sticky. If the door is an interior passage or bathroom door with no key, the spring latch below is the right part instead.
Schlage 16210613 F-Series 1 x 2.25 Spring Latch for Interior Doors
Schlage
Schlage 16210613 F-Series 1 x 2.25 Inch Triple Option Round Corner, Square Corner, Drive-in Replacement Spring Latch in Oil Rubbed Bronze
Price and specifications are read from the Amazon product page and can change.
Schlage 16210613 F-Series 1 x 2.25
Best for: F-Series passage and privacy doors
Pros
- Round, square and drive-in faceplates
- Adjusts to 2 3/8 or 2 3/4 in
- 1 x 2 1/4 in faceplates, screws included
- Oil Rubbed Bronze finish
Cons
- Spring latch, not for keyed entry
- No deadlatch plunger
The Schlage 16210613 F-Series 1 x 2.25 Triple Option Spring Latch is built for F-Series passage and privacy levers or knobs. Passage hardware is for doors that do not lock, such as hallways and closets; privacy hardware has a push-button or turn lock for bathrooms and bedrooms. A spring latch is the simpler latch type: a sloped bolt pushed out by a spring, with no deadlatch plunger. It is all an interior door needs.
The “triple option” is its biggest strength for DIYers. In the box are three faceplates: a square corner mortise faceplate, a radius (round) corner mortise faceplate and a drive-in faceplate. Each is 1 x 2 1/4 inches, it adjusts to both 2 3/4 inch (70mm) and 2 3/8 inch (60mm) backsets, and screws are included. The finish is Oil Rubbed Bronze, and it weighs 3.84 ounces.
This suits homeowners replacing a latch on an interior door or updating the finish to match new lever hardware. If you are also changing the handles, our guide to the Schlage passage lever covers matching hardware. For an exterior keyed door, pick one of the deadlatches instead.

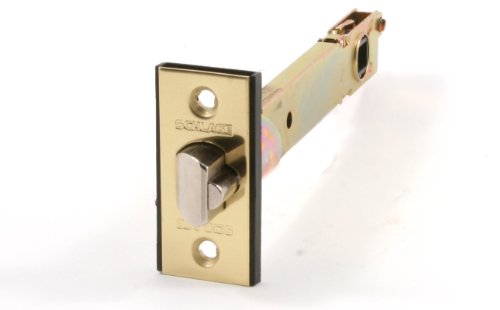

Schlage 16-126 5 Inch Replacement Deadlatch for Deep Backset Doors
Schlage
Schlage 16-126 5 Inch Replacement Deadlatch with 1 x 2 1/4 Inch Square Corner Fa, Satin Nickel
Price and specifications are read from the Amazon product page and can change.
Schlage 16-126 5 Inch Replacement Deadlatch
Best for: Doors drilled with a 5 inch backset
Pros
- 5 inch backset for deep setbacks
- 1 x 2 1/4 in square corner faceplate
- Zinc construction, Satin Nickel
Cons
- Only fits 5 inch backset doors
- Square corner only, spec lists deadbolt
The Schlage 16-126 5 Inch Replacement Deadlatch solves a less common problem: doors drilled with a 5 inch backset. Some older doors, and doors where the handle sits farther from the edge, have this deeper measurement, and a standard 2 3/8 or 2 3/4 inch latch will simply be too short to reach the handle hole.
The listing names a 1 x 2 1/4 inch square corner faceplate, a Satin Nickel finish, zinc construction and outer dimensions of 6.5 x 2.25 x 1 inches. It is described as a retrofit part. The specification table lists the lock type as “Deadbolt,” which conflicts with the title’s “Deadlatch”; a deadbolt is a separate, manually thrown bolt, so treat this as a deadlatch as the title says. The listing does not state which Schlage lock series it fits, so check your lock model or the old latch before buying.
This suits owners of doors with a 5 inch backset and a square-corner mortise cut. For standard backsets, the 16-211 or 16210613 is the better fit.
How to Choose the Right Schlage Replacement Door Latch
Step one is to measure the backset. The backset is the distance from the edge of the door to the center of the big round hole where the knob or lever sits. Most residential doors are either 2 3/8 inches or 2 3/4 inches. The 16-211 and 16210613 adjust to both, usually by rotating or sliding the latch body. If you measure 5 inches, only the 16-126 in this list fits.
Step two is to look at the faceplate corners. The faceplate is the thin metal plate around the latch on the door edge. Unscrew yours and check its shape: square corners, round (radius) corners, or no plate at all, just a round collar, which means a drive-in latch hammered into a plain hole. The 16210613 includes all three options. The 16-126 is square corner only.
Step three is to pick the latch type. Keyed entry locks need a deadlatch; passage and privacy knobs and levers use a spring latch. If you are upgrading the whole lock rather than just the latch, a complete Schlage entry door lock set comes with a matching latch in the box.
Step four is to match the finish, so the latch looks right beside your handles: Antique Brass, Oil Rubbed Bronze or Satin Nickel here. Finally, keep your old latch until the new one is fitted; comparing them side by side is the easiest way to confirm the fit.
FAQ
Which Schlage latch do I need?
Check three things: the lock type (keyed entry or passage and privacy), the backset (2 3/8, 2 3/4 or 5 inches) and the faceplate shape. For an F-Series keyed entry knob, choose the 16-211. For F-Series interior doors, choose the 16210613. For a 5 inch backset, choose the 16-126.
What is the difference between a deadlatch and a spring latch?
A spring latch is a single spring-loaded bolt. A deadlatch adds a small plunger that locks the bolt in place when the door is shut, making it harder to force open with a card. Entry doors use deadlatches; interior doors use spring latches.
How do I tell 2 3/8 from 2 3/4 backset?
Measure from the door edge to the center of the knob hole. About 2 3/8 inches is the smaller standard, and about 2 3/4 inches the larger. Both adjustable Schlage latches here handle either.
Will a Schlage latch fit a door with a different faceplate shape?
Only if the faceplate matches the recess in your door edge, or you enlarge the recess with a chisel. The 16210613 avoids this by including square, round and drive-in faceplates.
Do these latches come with screws?
The 16210613 listing says screws are included. The 16-211 and 16-126 listings do not mention screws, so plan to reuse your old ones if needed.
Can I replace a Schlage latch without changing the knob?
Yes. Remove the knob or lever, unscrew the faceplate, slide the old latch out and install the new one, then reattach the handle. The key is ordering a latch that matches your lock series and backset.
