Milwaukee SDS Rotary Hammers: Which Size Fits Your Jobs?
As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.
Milwaukee is one of the most familiar names on construction sites, and its rotary hammers are built for drilling into concrete, brick and stone. A rotary hammer is different from a regular drill or even a hammer drill: it uses a piston to strike the bit with real force while it spins, which is why it can chew through concrete that stalls an ordinary drill. If you are shopping for an SDS rotary hammer drill from Milwaukee, or buying one for a new homeowner or tradesperson, this guide explains the terms and compares six listings.
In one sentence: five of these are 18V cordless models ranging from compact 1-inch SDS Plus hammers to a large SDS-Max hammer, and one is a small corded 5/8-inch SDS Plus model.
Milwaukee SDS Rotary Hammer Drills Compared
| Model | Bit system | Max capacity | Power | Impact energy or torque listed |
|---|---|---|---|---|
| Milwaukee M18 Brushless 1 in. SDS Plus D-Handle | SDS Plus | 1 in. | 18V cordless | 1.95 ft-lb |
| Milwaukee 2912-20 M18 FUEL | SDS Plus | 1 in. | 18V cordless | 2 ft-lb |
| Cordless Rotary Hammer, SDS Plus | SDS Plus | 1 in. concrete | 18V cordless | 1.7 ft-lb |
| Milwaukee 5263-21 | SDS Plus | 5/8 in. | Corded, 5.5 A | 1.5 ft-lb (description) |
| Milwaukee 2717-22HD M18 FUEL | SDS-Max | 1-9/16 in. | 18V cordless kit | 5 ft-lb |
| Milwaukee 2715-20 M18 FUEL | SDS Plus | 1-1/8 in. | 18V cordless | 3.3 ft-lb |
Milwaukee M18 Brushless 1 in. SDS Plus D-Handle for Anchor Holes
The Milwaukee Electric M18 Brushless 1 in. SDS Plus D-Handle rotary hammer is a lighter cordless model. SDS Plus is a bit system where the bit slides into the chuck and locks without tightening, and the “1 in.” figure is the largest hole it is rated for in concrete. The D-handle is the rear grip shaped like a letter D, which gives a firm two-hand hold.
Milwaukee says it drills 3/8 x 2-inch holes faster than corded 1-inch D-handle rotary hammers, and up to 100 of those holes per charge with an M18 XC5.0 battery. Those are the typical sizes for concrete anchors when mounting shelves, rails or brackets. The AVS Anti-Vibration System reduces shaking in your hands, the brushless motor gives over 50% longer run time than brushed motors, and it weighs 5.3 pounds tool-only. Specs list 1,270 RPM and 1.95 ft-lb. It is sold without a battery.
This Milwaukee M18 D-handle rotary hammer suits electricians, installers and DIYers drilling many small anchor holes, especially overhead. For bigger holes, look at the 2715-20.

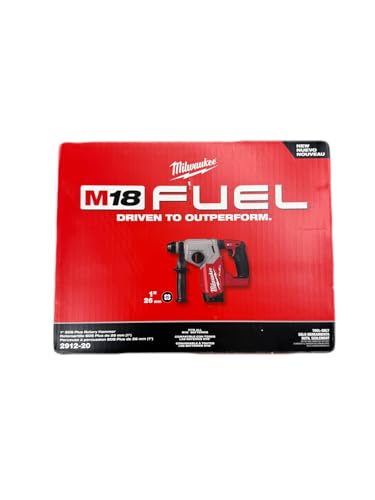

Milwaukee 2912-20 M18 FUEL 1 in. SDS Plus for Bind-Up Protection
Milwaukee
Milwaukee 2912-20 M18 Fuel 18V 1" Sds Plus Brushless Rotary Hammer
Price and specifications are read from the Amazon product page and can change.
Milwaukee 2912-20 M18 Fuel 18V 1″
Best for: Pros wanting bind-up protection
Pros
- 1 inch SDS Plus capacity
- AUTOSTOP bind-up control
- Three modes listed
Cons
- Case not included
- Listing specs contain errors
The Milwaukee 2912-20 M18 Fuel 18V 1″ SDS Plus brushless rotary hammer is part of the higher-performance M18 FUEL line. The listing says it offers the fastest drilling in its cordless class and features AUTOSTOP Control, which senses when the bit binds (catches suddenly in rebar or a crack) and stops the tool to reduce wrist-twisting kickback.
Specs list 1,330 RPM, 2 ft-lb, variable speed and three modes. It is part of the M18 System, which Milwaukee says covers over 200 tools, so batteries swap between them. A few specification lines look wrong: power source lists both battery and corded, and amperage reads 4 microamps. The description notes the case is not included, and “-20” in Milwaukee model numbers usually means tool only.
The Milwaukee 2912-20 suits anyone who drills often in reinforced concrete and wants AUTOSTOP. For lighter anchor work, the D-handle model above is a little lighter.
Cordless Rotary Hammer SDS Plus With Core Bit Capacity
Milwaukee
Cordless Rotary Hammer, SDS Plus
Price and specifications are read from the Amazon product page and can change.
Cordless Rotary Hammer
Best for: Buyers wanting 2-1/2 in core capacity
Pros
- 1 inch concrete capacity
- Up to 4,900 blows per minute
- LED light and anti-vibration
Cons
- No model number on listing
- Heavier at 7.0 lb
The Cordless Rotary Hammer listing, labeled only as SDS Plus under the Milwaukee brand, is the least clearly identified item here. The title and description do not give a Milwaukee model number, and the battery replacement reference is a distributor code, so you are relying on the brand field and photos to confirm what you are getting.
The description is detailed: 18V, bare tool, brushless motor, 0 to 1,400 RPM, 0 to 4,900 blows per minute, 1.7 ft-lb impact energy, a 1-inch concrete and solid bit capacity, a 2-1/2-inch core bit capacity, stop rotation mode for light chiseling, a D-handle, an anti-vibration system and an LED light. It is 12-31/64 inches long and weighs 7.0 pounds. The listing also describes communication between tool, battery and charger to protect from overloading and overheating.
This suits buyers who want core bit capacity for larger openings. Because the model is not named, compare the photos with Milwaukee’s line before ordering.
Milwaukee 5263-21 5/8 in. SDS Plus Corded for Compact Jobs
Milwaukee
Milwaukee 5263-21 5/8" SDS Plus Rotary Hammer
Price and specifications are read from the Amazon product page and can change.
Milwaukee 5263-21 5 8″ SDS Plus
Best for: Corded users drilling small holes
Pros
- Compact 4.6 lb body
- 5 amp corded motor
- Mechanical clutch
- Rotary hammer or rotation only
Cons
- 5/8 inch max capacity
- Needs an outlet
The Milwaukee 5263-21 5 8″ SDS Plus rotary hammer (a 5/8-inch model) is the only corded tool here. A corded hammer never runs out of battery, and this one is compact at 4.6 pounds. The features list 10.25 inches long, while the description says 10.9 inches.
A 5.5-amp motor delivers 0 to 3,700 RPM and 0 to 4,400 blows per minute, and the description gives 1.5 ft-lbs of impact energy. It has a mechanical clutch that protects the tool when the bit binds, AVS anti-vibration, and two modes: rotary hammer and rotation only, the latter for drilling wood or metal without hammering. The “-21” means it comes as a kit per the description.
The Milwaukee 5263-21 corded hammer suits homeowners who drill occasional small holes for anchors and do not own Milwaukee batteries. Its 5/8-inch limit means larger holes need a bigger model. You can also compare it with a regular Milwaukee cordless hammer drill if your jobs are mostly brick and light masonry.
Milwaukee 2717-22HD M18 FUEL SDS-Max for Heavy Demolition
Milwaukee
Milwaukee 2717-22HD M18 FUEL 1-9/16 in. SDS-Max Rotary Hammer High Demand 9.0Ah Kit
Price and specifications are read from the Amazon product page and can change.
Milwaukee 2717-22HD M18 FUEL 1-9 16
Best for: Heavy coring and chipping in concrete
Pros
- SDS-Max, 1-9/16 inch
- 5 ft-lb impact energy
- Kit with 9.0Ah battery
Cons
- Overkill for home projects
- Listing specs contradict each other
The Milwaukee 2717-22HD M18 FUEL 1-9/16 in. SDS-Max rotary hammer is in a different class. SDS-Max is a larger, stronger bit system for bigger holes and chiseling. The description calls it the first 18V SDS-Max cordless solution and says it drills as fast as a corded SDS-Max hammer.
A POWERSTATE brushless motor delivers 5 ft-lbs of impact energy, far above the SDS Plus models. The description names dry coring and medium-duty chipping in concrete block and reinforced concrete, with over 20 minutes of continuous chipping. The title calls it a High Demand 9.0Ah kit, so a battery is included. The specifications contradict the features, listing a corded power source and 9 amps, which appear to be data errors.
The Milwaukee 2717-22HD SDS max suits contractors and serious renovators breaking up concrete or cutting large holes. It is more tool than most homeowners need.
Milwaukee 2715-20 M18 FUEL 1-1/8 in. SDS Plus for Larger Holes
Best for: Frequent larger holes in concrete
Pros
- 1-1/8 inch SDS Plus
- 3 ft-lb listed energy
- M18 FUEL line
Cons
- Very thin listing details
The Milwaukee 2715-20 M18 Fuel 1-1/8″ SDS Plus rotary hammer is the largest SDS Plus model here. Its 1-1/8-inch rating and 3.3 ft-lb listed figure put it between the 1-inch SDS Plus tools and the SDS-Max hammer.
The listing is thin: 18V lithium-ion, 1,350 RPM, M18 FUEL branding and made in China. It does not describe anti-vibration, bind-up control or modes. Model numbers ending in “-20” are usually tool only.
The Milwaukee 2715-20 suits users who regularly drill holes near or above 1 inch but do not need SDS-Max.
How to Choose the Right Milwaukee Rotary Hammer
SDS Plus vs SDS-Max comes first. SDS Plus covers most anchor holes, conduit holes and light chiseling. SDS-Max is for large holes, coring and heavier demolition. Bits are not interchangeable between the two systems.
Next, match bit size to your work. The capacity rating tells you the biggest hole the hammer is designed for in concrete. Most shelf and railing anchors need 3/8 to 1/2 inch, which any model here handles. For holes near 1 inch, choose the 2912-20, D-handle, or 2715-20. The corded 5263-21 tops out at 5/8 inch.
Decide between corded and cordless. Cordless models need M18 batteries, and most here are sold tool-only. The 2717-22HD kit includes a battery.
Consider weight and comfort. The corded 5263-21 at 4.6 pounds and the D-handle at 5.3 pounds are the lightest for overhead work. When comparing brands, our rotary hammer drill guide covers other options.
FAQ
What is the difference between SDS Plus and SDS-Max?
Both are slide-in bit systems. SDS Plus uses smaller shanks for holes up to about 1-1/8 inch here, and SDS-Max uses larger shanks for bigger holes and heavier chipping.
Do these cordless Milwaukee rotary hammers include batteries?
Most are listed as tool only. The 2717-22HD is a kit that includes a 9.0Ah battery.
Is a rotary hammer better than a hammer drill for concrete?
Generally yes. A rotary hammer uses a piston to deliver stronger blows, so it drills concrete faster with less effort.
Which Milwaukee rotary hammer should a homeowner buy?
For occasional anchor holes, the corded 5263-21 or the M18 D-handle model. Homeowners already using M18 batteries will find the cordless models convenient.
What does AUTOSTOP do?
On the 2912-20, it senses a bind-up and stops the tool to help prevent sudden twisting.
